Versatile, Ergonomic, and Simple to Install

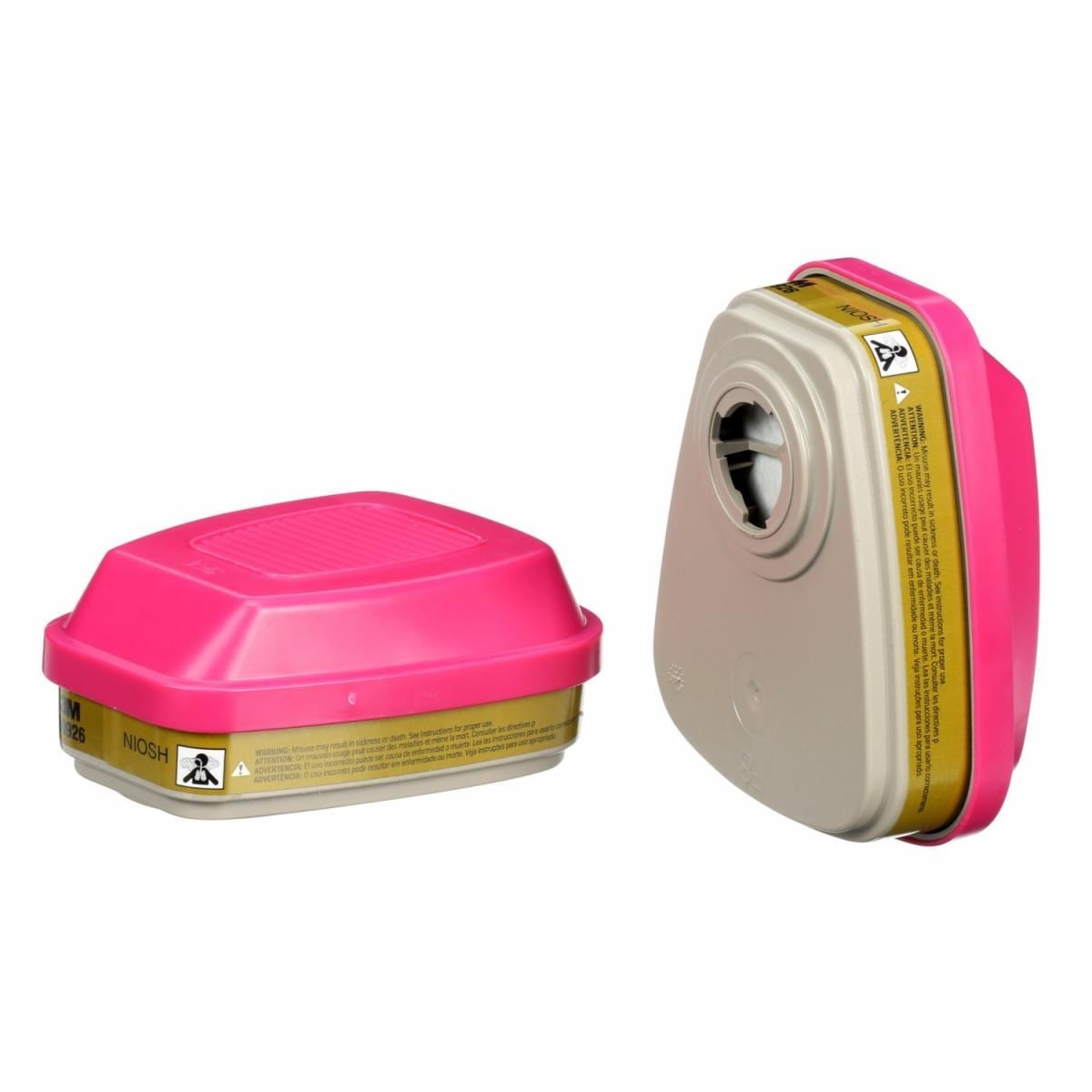

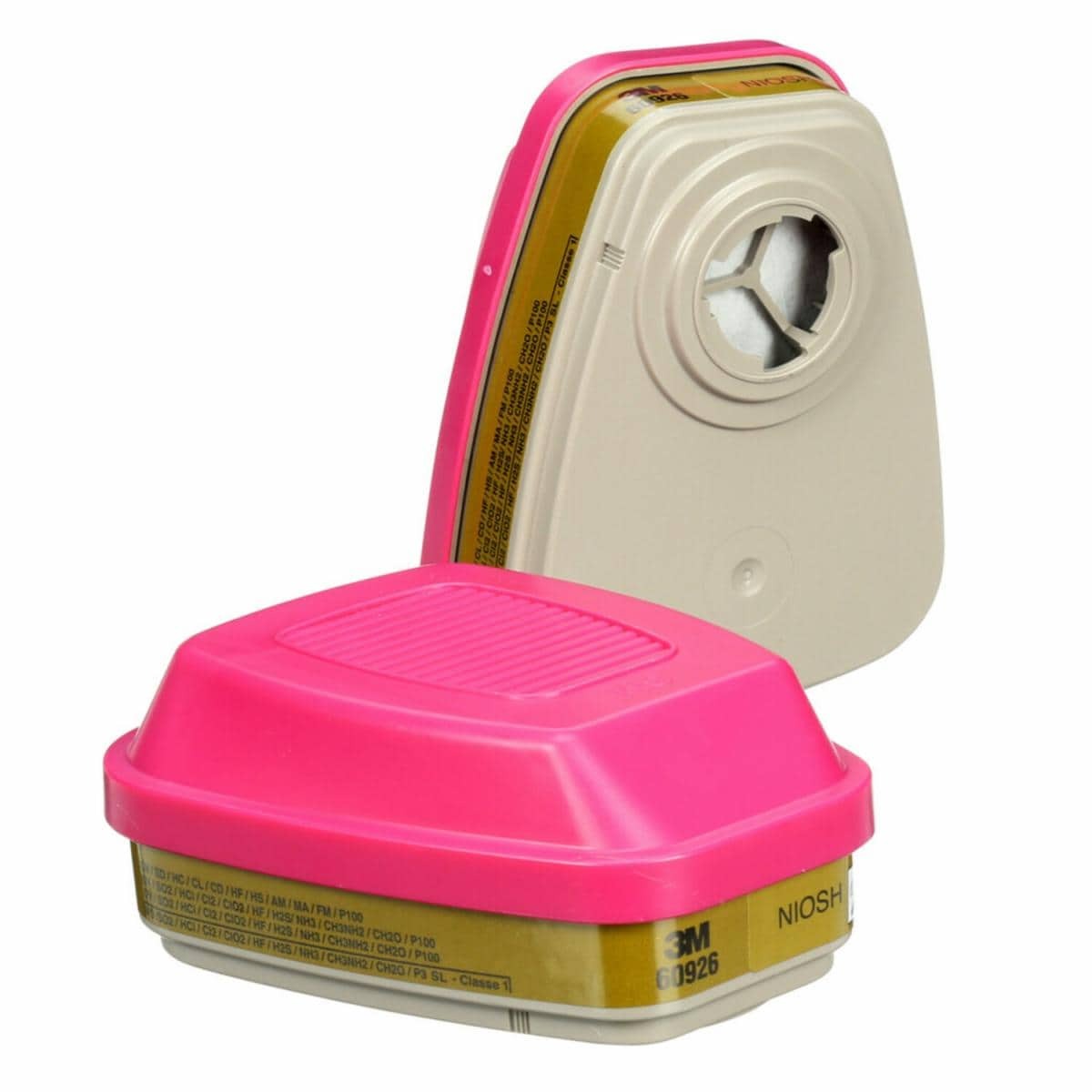

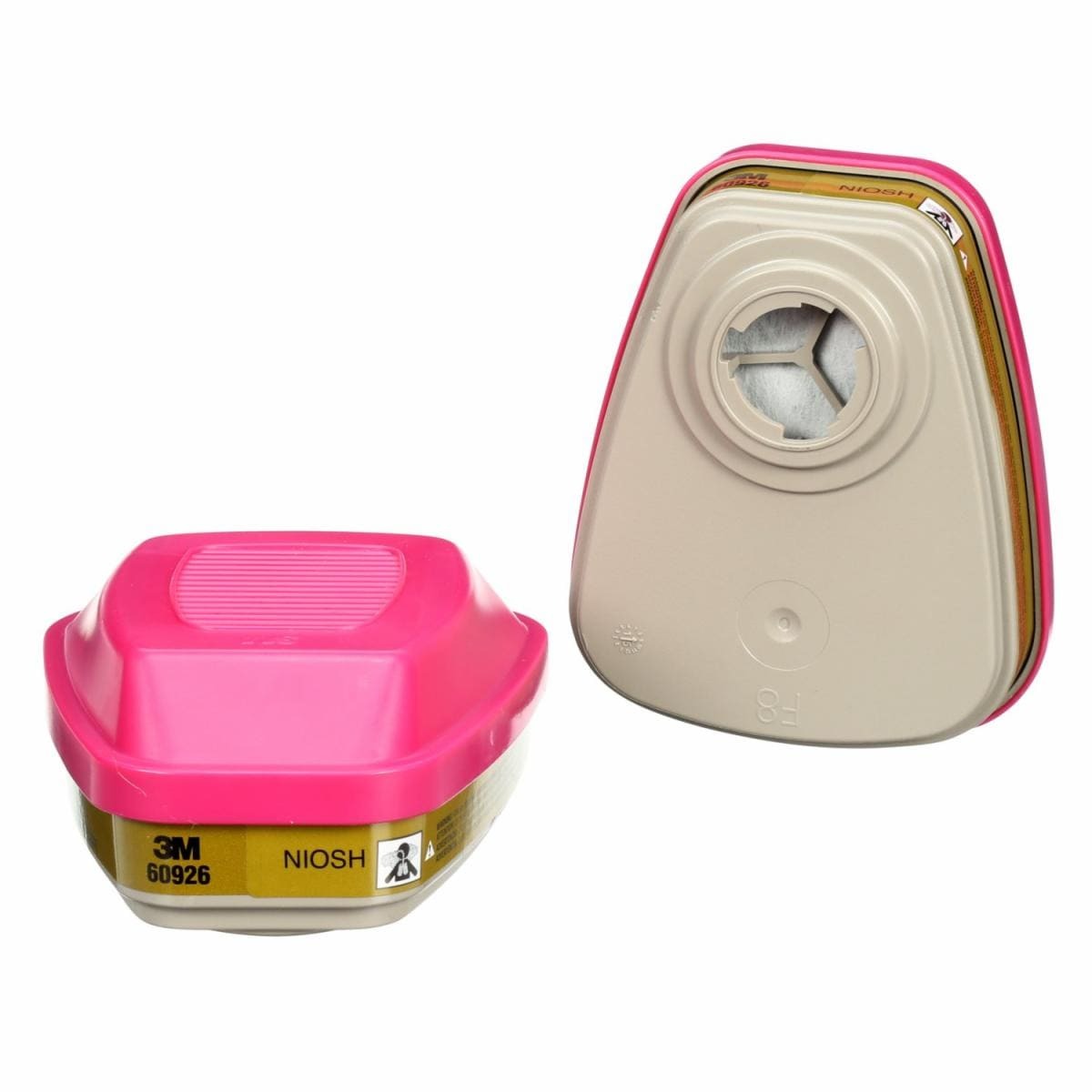

Designed to enhance field of view and comfort on the job, these gas/vapor cartridges feature a low-profile, swept-back design. The 3M Gas/Vapor Cartridges are easy to install. Plus, these cartridges are compatible with 3M 6000 Series Half Facepieces, 6500/6500QL Series, 7500 Series, 6000 Series Full Facepieces, FF-400 Series, 7800 Series, 3M Scott AV-3000 HT and AV-3000 SureSeal Facepieces with AV-632 Bayonet Adapter, thus helping to reduce inventory needs.

Easy Breathing

3M Gas/Vapor Cartridges are designed to balance breathability and long service life. Gas and vapor cartridges use carbon particles to adsorb contaminants, filtering the air that you breathe. 3M has designed our cartridges to be easy to breathe through and long lasting by optimizing the layers and depth of the carbon bed, geometry of the cartridge body, and carbon particle size.

Help Protect Your Workforce

After you've determined the contaminants and exposure levels in your work environment, help protect your employees with a properly fitted 3M Reusable Respirator and corresponding cartridges. 3M Gas/Vapor Cartridges are NIOSH-approved and help provide respiratory protection from certain gas or vapor concentrations up to 10 times the OSHA Permissible Exposure Limit (PEL) with half facepieces and 50 times the OSHA PEL with quantitatively fit tested full facepieces. Not for use in environments that are immediately dangerous to life or health (IDLH) or contain hazardous levels of airborne particulates.

Key Features:

• NIOSH approved for use against a range of gases, vapors, and particulates depending upon the model selected
• Bayonet-style connection fits a wide range of compatible half and full facepiece 3M Reusable Respirators
• Use with NIOSH approved 3M Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M Scott AV-3000 SureSeal or AV-3000 HT
• Swept-back, low profile design for optimized field of view and balance
• Lightweight with low breathing resistance
• Quarter turn for a quick and easy installation
• Wide range of applications may reduce inventory needs
• Use for protection in hazardous environments
• For workplace/occupational use only

Specifications:

• Product Type: Filter & Cartridge
• Filter Material: Glass Fiber Paper
• Filter Class: P100
• For Use With: Reusable Respirators
• Connection Type: Bayonet
• Accessories: Yes
• Aerosol Type: Oil & Non-oil
• Cartridge or Filter Type: Multi-gas, Particulate, Vapor
• Clip-on Welding Shield: Yes
• Compatible with 3M PAPR Systems: Yes
• Compatible with 3M Supplied Air System: Yes
• Compatible with Welding Shield: Yes
• Cool Flow Exhalation Valve: Yes
• Drop-down Feature: Yes
• Enhanced Comfort: Yes
• Enhanced Durability: Yes
• Eye Protection: Yes
• Features: Particulate Filter Permanently Attached to Cartridge
• Hazard Type: Dust, mist, fumes, gases or vapours and combination hazards, Mold, Organic Vapor, Silica
• NIOSH Cartridge or Filter Assigned Color Coding: Magenta/Olive
• NIOSH Filter Approval Rating: MG/P100
• Particulate Protection: Ammonia, Asbestos, Formaldehyde, Methylamine, Mold, Organic Vapor, Silica
• Product Series: 6000, 7000, 7500, 7800S, FF-400, Rugged Comfort 6500
• Protection Focus: Ammonia, Chlorine, Chlorine Dioxide, Formaldehyde, Hydrogen Chloride, Hydrogen Fluoride, Hydrogen Sulfide, Methylamine, Organic Vapor, Sulfur Dioxide
• Protection Type: Ammonia, Asbestos, Formaldehyde, Methylamine, Mold, Organic Vapor, Silica
• Purpose: Cartridges & Filters
• Silicone Faceseal: Yes
• Six-point Head Harness: Yes
• Spare Parts: Yes
• Speaking Diaphragm: Yes
• Specifications Met: P100
• Overall Height: 3.4"
• Overall Length: 4.2"

Compatible Respirator

3M Full Facepieces 6000, 3M Full Facepieces FF-400, 3M Half Facepiece Respirators 6500QL Series, 3M Half Facepiece Reusable Respirators 6000 Series, 3M Half Facepiece Reusable Respirators 7500 Series.

Recommended Applicatio

Batch-charging, Cleaning, Composite Finishing, Final Finish, Grinding, Handling, Hazardous Waste Handling, Laboratories, Maintenance, Manufacturing, Paint Preparation, Painting, Parts Cleaning, Pesticide Application, Petrochemical, Pharmaceuticals, Pouring Molten Metal, Powder Charging, Powder Coating, Remediation, Seal Coatings, Spray Coating, Spray Painting, Torch Cutting, Welding, Working in Dusty & Poisonous Atmosphere.

Recommended Industries:

Construction, Design & Construction, Facility Sanitation, Food Processing, Food Safety, General Manufacturing, Heavy Industrial, Heavy Infrastructure, Industrial Maintenance, Marine, Metal Production & Fabrication, Mining, Oil & Gas, Pharmaceutical, Transportation.
