The personal single-gas detection device measures CO, H2S, SO2 or O2 quickly and precisely. Measured data can easily be transmitted into the Drager Gas Detection Connect system via Bluetooth. Quick sensor response times and a powerful battery also ensure safety.

Strong performance for maximum safety

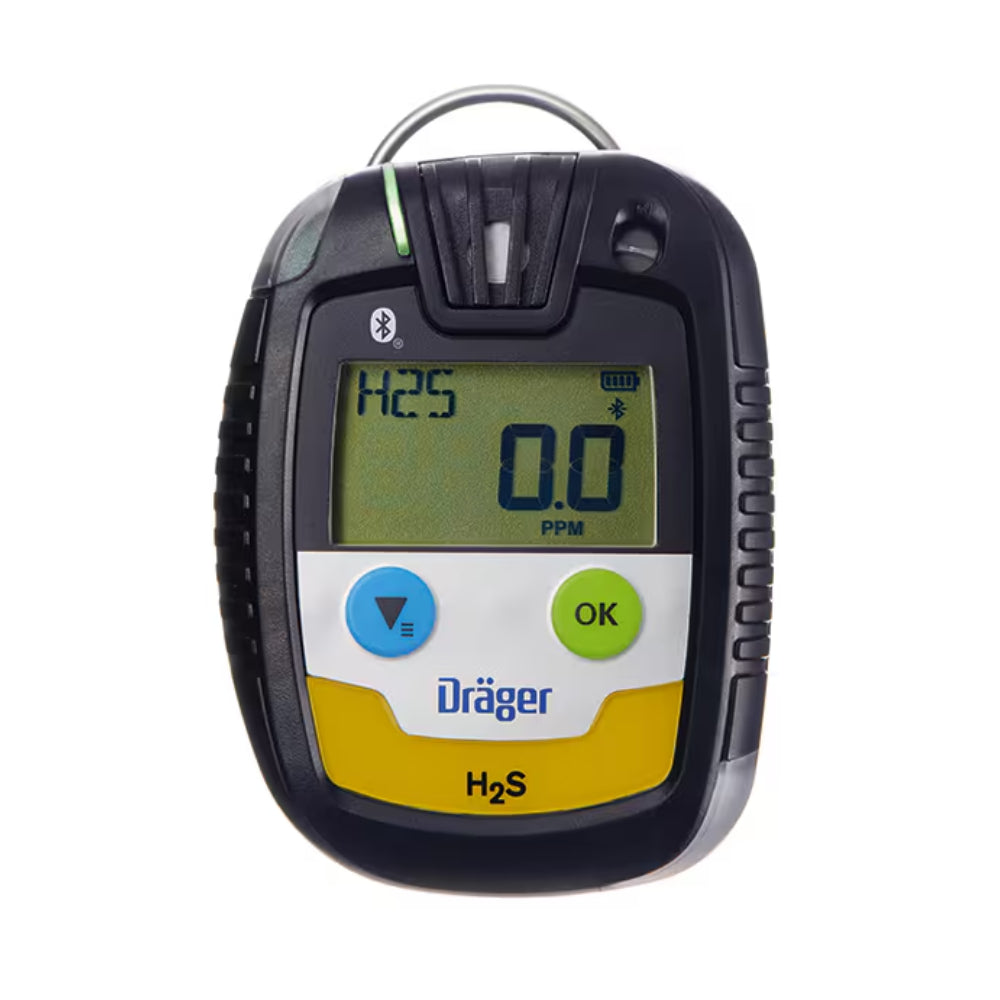

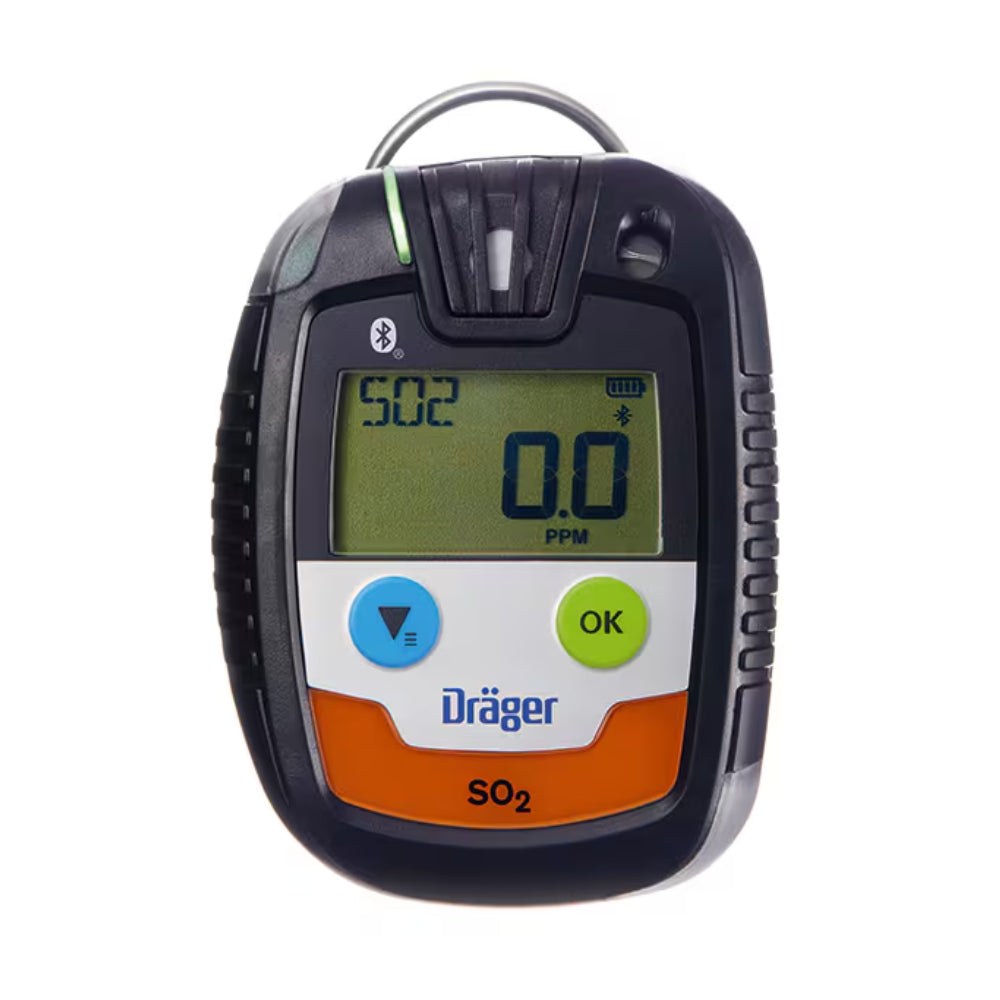

You can rely on the Drager Pac 6500: the personal single-gas detection device warns against hazardous concentrations of carbon monoxide, hydrogen sulphide, sulphur dioxide or oxygen with precision and reliability. Powerful sensors with a very low t-90 response time ensure quick reactions. The Pac 6500 is versatile thanks to its wide measurement range. For example, the CO sensor measures concentrations from 1 to 1,999 ppm, and the H2S sensor from 0.4 to 100 ppm.

Easy handling thanks to clear user guidance

The D-Light indicates whether functionality of the device has been tested and whether it is ready to use. The housing is also designed with your safety in mind: each sensor variant of the Drager Pac 6500 features clearly visible colour coding, thereby minimising the chance of mistakes.

Robust design – even for the toughest conditions

The Pac 6500 can easily handle even extreme conditions. Depending on the sensor, temperatures from -40 °C to 55 °C and air pressures between 700 and 1,300 mbar can be tolerated. A membrane filter protects the sensor from foreign matter such as dust and liquids. The shock-proof, chemical-resistant housing meets the requirements specified in the IP68 standard rating.

User-friendly display with all important information

The large display is word-free and clearly indicates the respective gas concentration. Other important information, such as the battery capacity, is also displayed. The bright backlighting ensures that all values are clearly legible in the dark.

360° alarm with various functions

If the Drager Pac 6500 measures hazardous gas concentrations, it sets off an audible, visual and perceptible vibrating alarm. Two bright, flashing LEDs on the top and bottom of the device ensure that the alarm is easily visible from all sides. The acoustic signal reaches a volume of 90 dB. The display can show the peak concentration measured at any given moment. Earlier alarms registered can also be retrieved at a later time even if they have been acknowledged. The Pac 6500 with oxygen sensor has two additional alarm thresholds in addition to the standard alarm threshold settings.

Data logger and event logger for analyses and reports

The Drager Pac 6500 logs concentrations and events along with date and time. The data can easily be transferred to a computer for further processing. With the new Gas Detection Connect system – and thus the integrated X-dock stations - you can view and download the logs from a central cloud-based asset management system. Available anytime from anywhere.

Bluetooth communication

?With the new Bluetooth enabled Pac you can wirelessly transmit live measurement values into the Drager Gas Detection Connect system. You can easily track the location of the worker and their Pac by connecting the device to the Gas Detection Connect gateway app. Drager Pac devices can be integrated into third party applications via OpenGATT protocol.

Economical operating costs

All versions of the Pac 6500 are equipped with extremely durable DragerSensors and a powerful battery. The Pac 6500 is protected against water, dust and other foreign bodies by a special membrane filter. When the filter becomes heavily soiled in use, you can quickly and easily replace it yourself. The device is then ready to use again right away.

Fast function test saves time and money

Function tests and calibrations can be carried out especially efficient in the Drager X-dock calibration station. The automatic bump tests in the X-dock are a cost-efficient and convenient solution thanks to the short test duration and the extremely low consumption of test gas. The Pac 6500 is simply placed in the bump test station and automatically selects the correct setting.

Specifications:

• Product Type: Gas Detector
• Battery Service Life: 2 years
• Number of Gases: 1
• Temperature Range: -40°C - 55°C
• Air Humidity: 10% to 90%
• Personal Air Monitoring: Yes
• Air Pressure (hPa): 700 - 1300
• Degree of Protection: IP 168
• Features: TLV / STEL, Peak, Alarm Hold, D-light
• Lifetime: Unlimited
• Weight: 106 g
• Approvals: ATEX, IECEx, c CSA us, CE, GOST (EAC), Shipping approval (MED)
