It especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, H2S, NO2 and SO2. The innovative signalling design and extensive range of accessories ensure optimum safety and easy handling.

Specially designed for use with a pump, optimised for clearance measurement

The Drager X-am 3500 is equipped with a very powerful pump. It can be connected with hoses of up to 45 metres in length. A pump adapter makes it easy to switch between diffusion and pump mode at any time. This means the pump is only operated when you actually need it. That saves energy, reduces wear and tear, and thereby extends the lifespan of the pump.

The performance of selected sensors has been verified by an external approval body within the scope of the measurement performance approval (EN 60079-29-1), for combustible gases and vapours for methane, propane and n-nonane, among others.

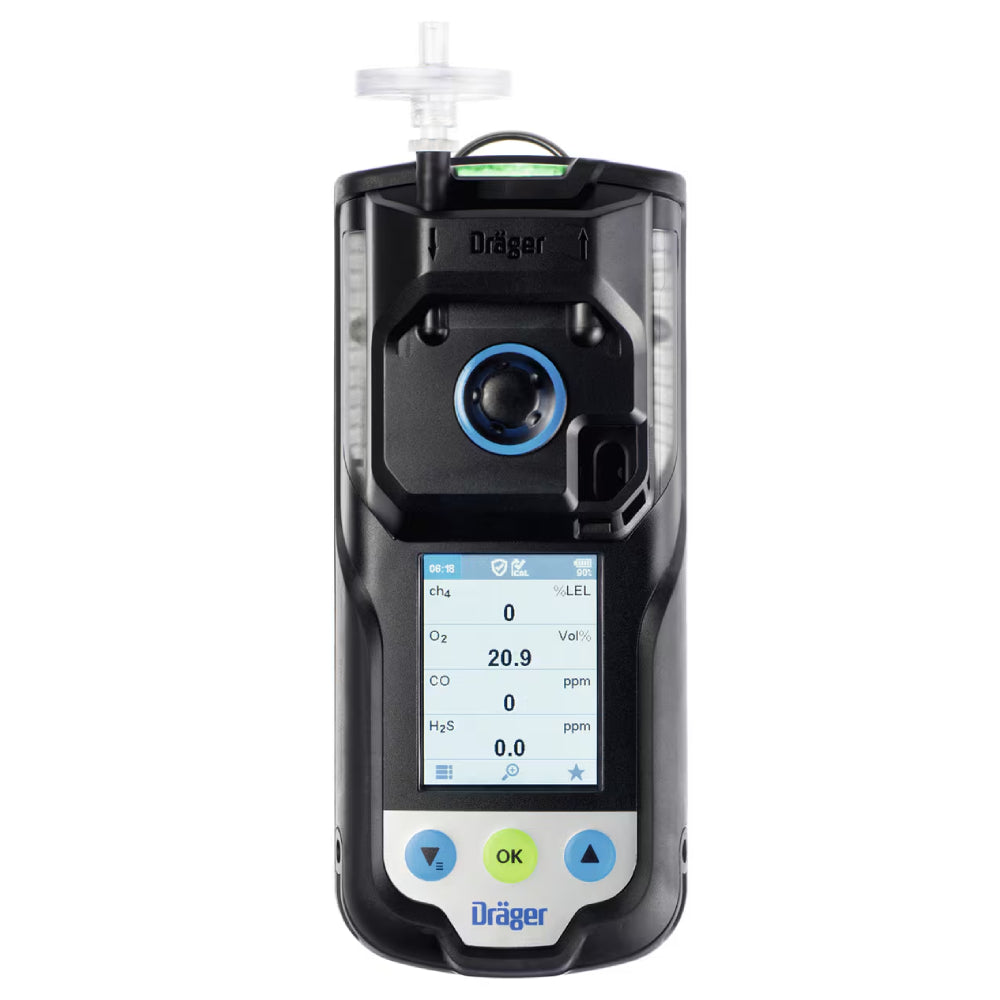

Handy and durable, the Drager X-am 3500 is intuitive to operate single-handedly using three function keys. The easy-to-read colour display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.

Clear signalling design

The signal system of the Drager X-am 3500 is based on a clear colour code, in accordance with the requirements of the EN 60079-29-1, EN 45544-1 and EN 50104:

Red light = gas alarm Yellow light = device-related alarm, e.g. low battery Green light = device is ready for use The green glow of the D-Light allows you to see from a distance whether the device has been properly tested and is ready for use.

In case of an alarm, the X-am 3500 alerts you with colourful alarm LEDs, a loud horn (100 dB(A) at a distance of 30 cm), and clearly palpable vibration. Optionally, four preset hazard symbols are available for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognise the type of hazard based purely on the symbol displayed.

Economical Fleet Management

Bumptest and calibration are carried out simply and quickly using the Drager X-dock calibrating station. Its low test gas consumption keeps operating costs to a minimum.

Its reporting function and numerous other useful features make the Drager Gas Detection Connect Software a smart addition to any fleet management operation. To identify the devices in the fleet, you can either use tried and tested barcodes or an integrated RFID transponder.

Inductive charging protects against wear and tear

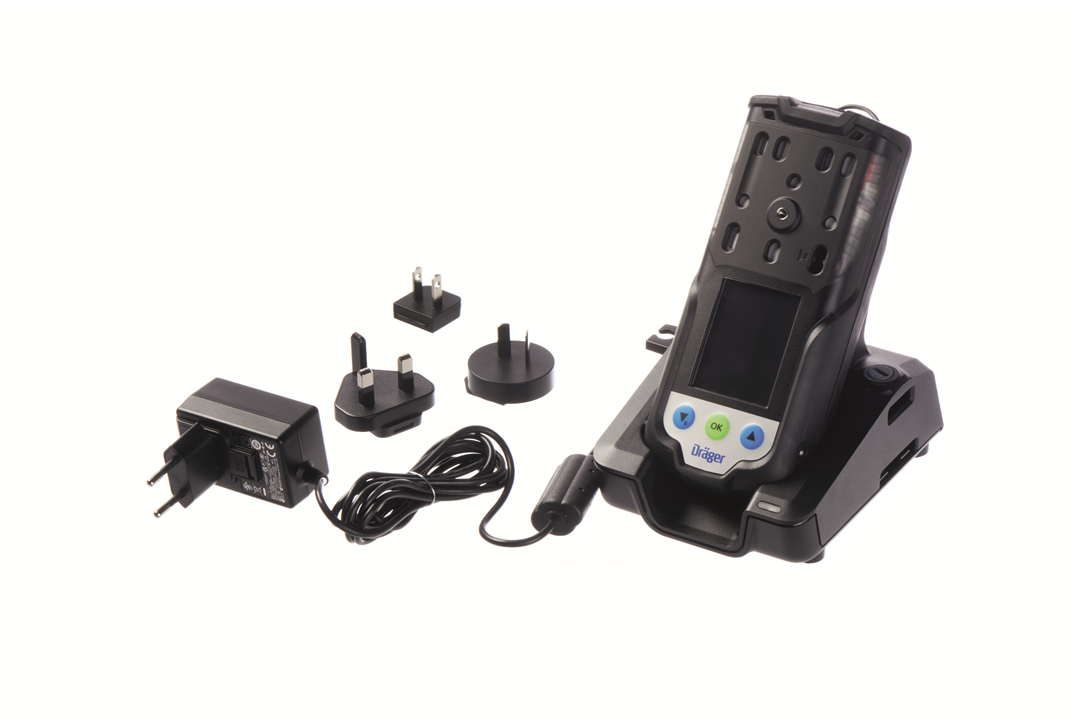

The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure at once, e.g, when in use inside vehicles or on machinery. The charging cradle can connect with one another, taking up minimal space, and are compatible with existing Drager X-am series cradles.

Specifications:

• Product Type: Gas Detector
• Model: Pac 3500
• Target Gases: O2, CO, H2S, NO2 and SO2
• Number of Gases: 1-4
• Personal Air Monitoring: Yes
• Temperature Range (device): 20 °C to + 50 °C
• Air Pressure (hPa): 700 to 1.300
• Degree of Protection (IP class): IP 68
• Approvals: cCSAus, IECEx, ATEX, CE
• Alarm Hold: Visual
• Dimensions (without clip) W x H x D:179 x 77 x 42 mm
• Weight: 1.22 lbs
