Key Features:

Easy to use

• Pump Operation starts automatically when the pump is connected to a switched on gas detector. The pump also switches off automatically when it is removed from the gas detector. Using the Drager X-am in combination with the pump does not affect the measurement performance for standard gases.

Charging via USB

• The pump's battery can be charged via the micro USB port. A standard mobile phone charger can be used for this. The charging status is indicated by an LED on the pump. A full charge takes approximately six hours.

Charging via USB

• The pump battery can be recharged using the micro USB port. A standard cellphone charger can be used for connecting. The charge status is indicated by an LED on the pump. A full charge requires approximately six hours.

Handy and robust

• The pump’s easily manageable 17.5 cm device height and a weight of only 200 g permit easy carrying and stowage. The Drager X-am pump is dust and water resistant according to the IP67 Protection Classification. It performs reliably even at temperatures down to -40 °C. The battery is solid cast to protect against damage due to dropping or impact.

Effective range of measuring results: with explosion protection

• The pump can reach the ambient atmosphere in inaccessible places – up to a distance of 45 m, e.g. in channels, shafts, or tank systems. The pump has been optimised for hoses with a diameter of 3 mm – for fast response times and low power consumption. The use of the pump in combination with a X-am device ensures you of consistently precise measuring results – even in the most demanding situations. Because the pump has an explosion protection approval for Ex zone 0. In combination with the Drager X-am 2500/5000/5600, which are likewise approved for Ex zone 0, the X-am pump allows for secure and continuous monitoring of enclosed areas.

Long operating time for long deployments

• The pump is not only highly resilient on the outside but also inside. The battery capacity lasts for three workweeks at 8 measurements per day (i.e. up to 20 hours of continuous Operation). Convenient: The operating time of the X-am is not decreased when the pump is in Operation. Moreover, the entire pump operating time can be evaluated using CC-vision software.

Data logger

• Pump operating time, charge status, battery warnings, and flow alarm are displayed on the Drager X-am and stored in the data logger. This makes it possible to display the results of the clearance measurements separate from the evaluations of personal monitoring.

Specifications:

• Product Type: Pump
• Operating temperature: -20 °C to 50 °C (briefly -40 °C)
• Temperature when charging: 0 – 35 °C
• Charging Time: < 6 hours
• Operating time: up to 20 hours, depending on type of application and temperature
• Maximum hose length: 45 m
• Air flow volume: 0.4 L/min
• Storage temperature: Up to 1 month -20 °C to 60 °C, otherwise -20 °C to 45 °C
• Pressure: 700 to 1,300 hPa
• Air Humidity: 0 to 95 % RH
• IP Protection Class: IP67
• Approvals: c_CSA_us, ATEX/IECEx (Zone 0 T4 and M1), DNV-GL, CE label
• For Use With: X-am 2500/5000/5600/2800/5800

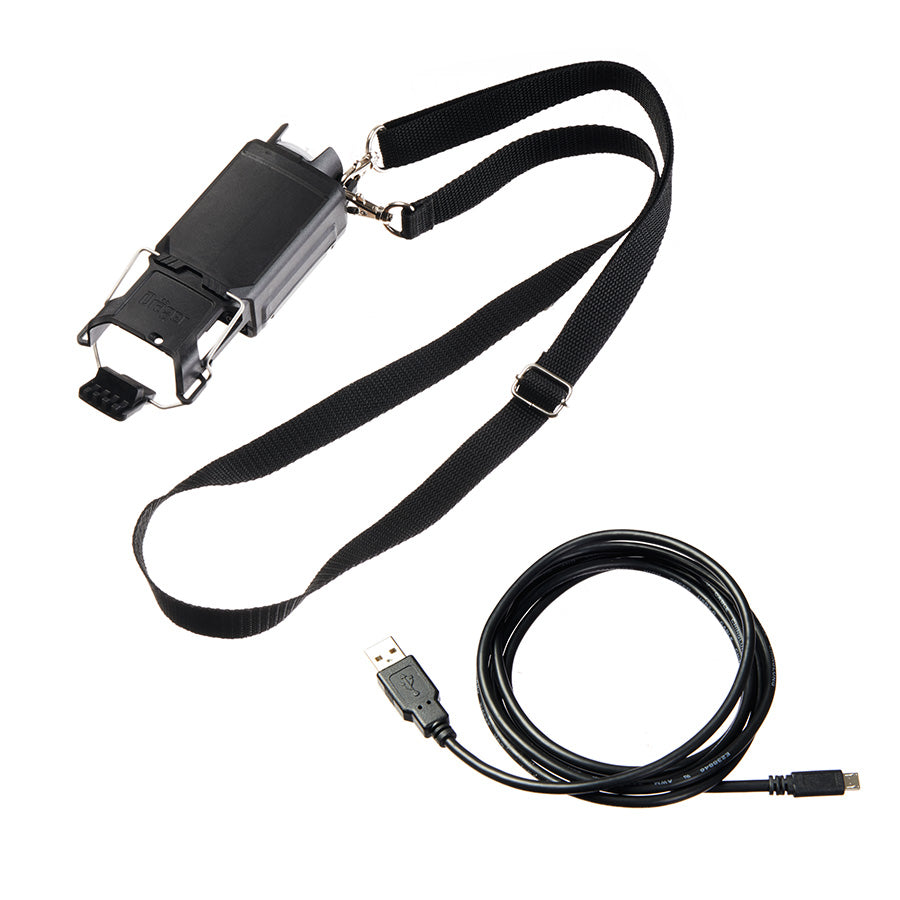

• Includes: USB charger,wall plug and shoulder
• Weight: approx. 200 g
• Dimensions: 2.64" x 6.89" x 1.50"
