The instrument of choice for monitoring the purity of breathing air in the low pressure range. In combination with the Drager Oil Impactor, the system achieves an unprecedented quality of breathing air monitoring

Tested breathing air

Using the Drager Aerotest Alpha, it is possible to determine the quality of the breathing air which is supplied by a compressor or a compressed gas cylinder. By means of the test system, the reliable testing of the breathing air is ensured according to the applicable classification EN 12021.

Pollutant detection and measurement

Using the Drager Aerotest Alpha, it is possible to reliably determine different potential pollutants such as carbon monoxide, carbon dioxide, hydro steam or oil in the compressed air flow. Optionally, the values can be determined simultaneously or individually.

Fast and easy to use

Using the plug connection, the measuring device, which can be used independently of power supplies, can be connected to the low-pressure compressed air supply system to be monitored easily and without problems. Within just a few minutes, the quick check delivers a precise measurement result and shows the degree of the contamination.

Drager Oil Impactor

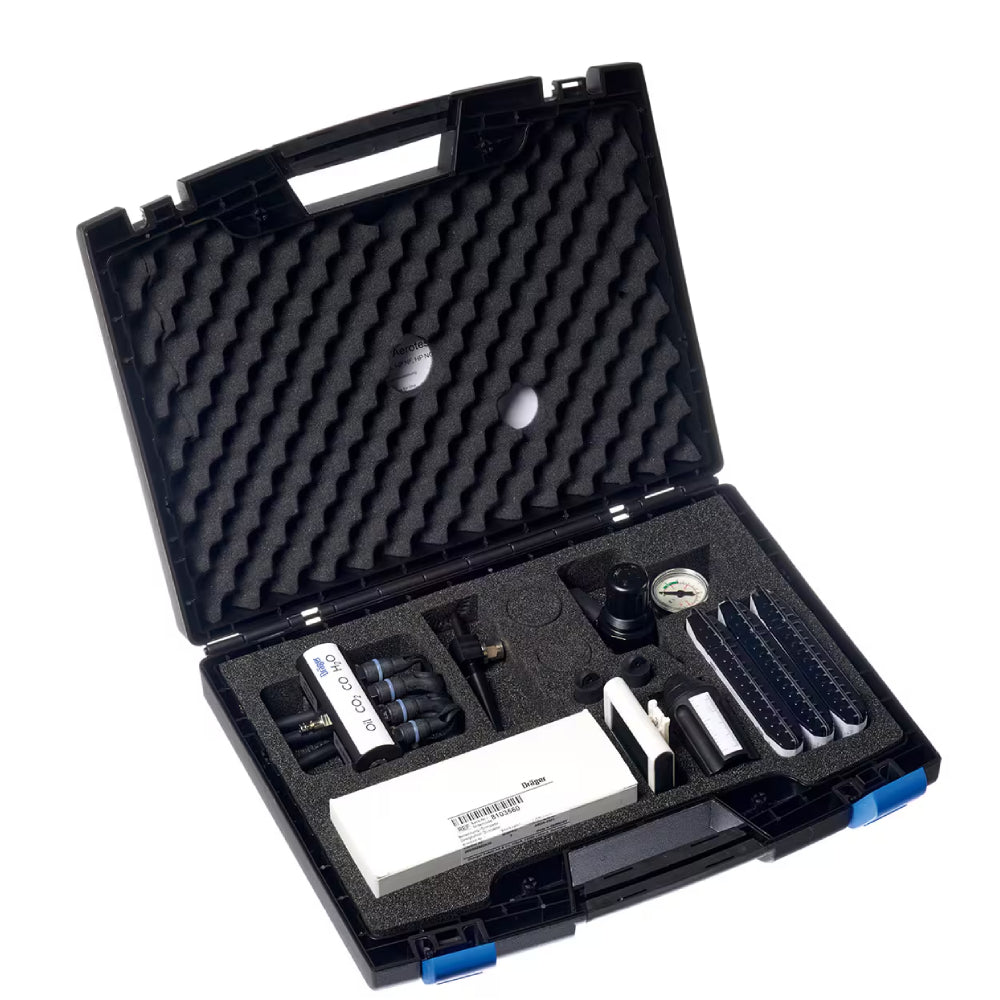

The new Drager Oil Impactor was developed especially for the testing and checking of compressed air for oil aerosols. Apart from common and conventional oils, even synthetic oils can now be measured without problems – independent of their kind or viscosity – for the first time. All components of the Drager Aerotest Alpha are ready to hand in a practical case.

Specifications:

• Weight: 3 kg
• Maximum Supply Pressure: 20 bar
• Pressure Gauge: 0.3 to 15
• Air Supply: 9 mm
• Supply Pressure (set on delivery): 3 bar
• Flow Rate: 0.2 and 4.0 l/min
