Product Description
Key Features:

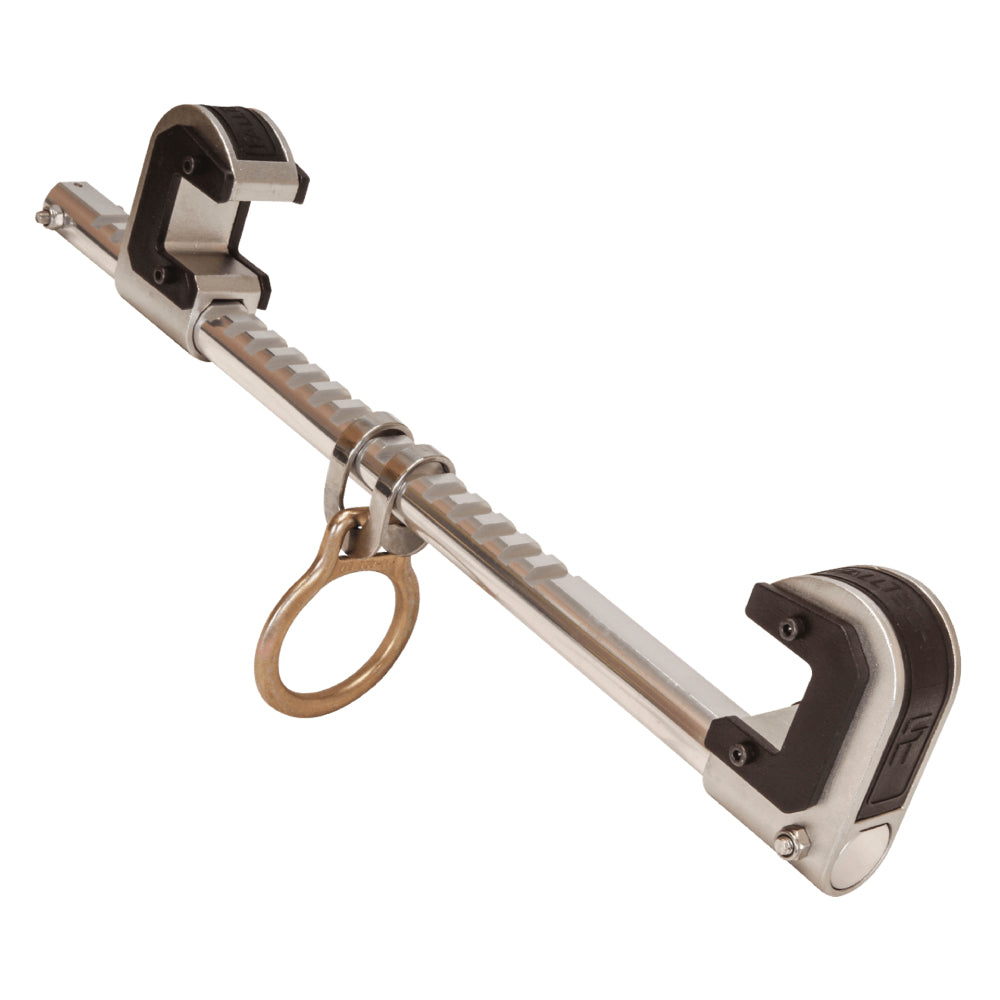

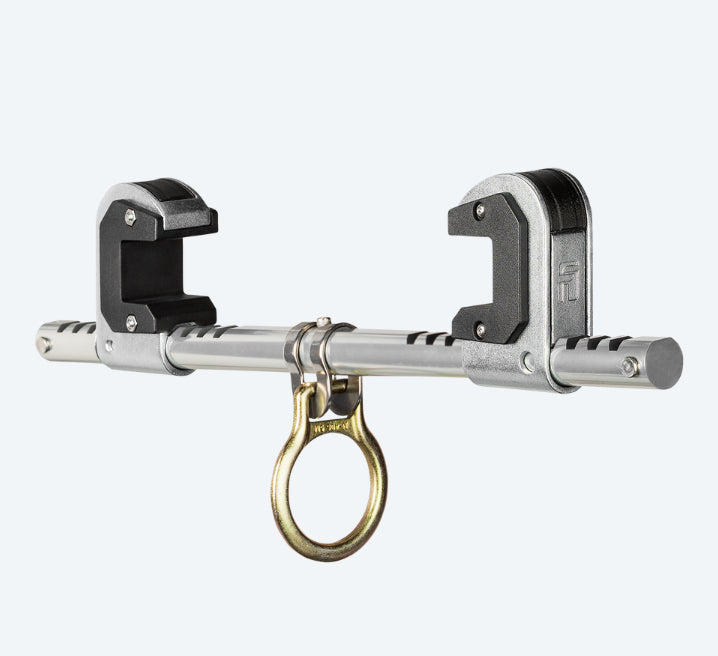

- Features aluminum crossbar and steel clamping jaws with nylon slider pads
- Fits beam flanges from 3" to 14-1/2" wide and up to 1-1/4" thick
- Single adjusting jaw includes concealed locking latch
- Alloy steel D-ring slides with jaw adjustment
- For temporary mobile use on horizontal I-beams
- Complies with ANSI Z359.18-2017
Specifications:
- Product Type: Beam Anchor
- D-ring: Plated Alloy Steel; 5,000 lb Minimum Static Strength
- Crossbar Material: Aluminum Alloy
- Clamp Jaws Material: Plated Alloy Steel
- Static Strength: 5,000 lb Minimum
- ANSI User Capacity: 130 to 310 lb Maximum
- OSHA User Capacity: 130 to 425 lb Maximum
- Compliant With: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
Certifications:
- ANSI Z359.18-2017
- OSHA 1926.502 and 1910.66
