Product Description
Key Features:
- 20% lighter than typical 30' cable class 2 leading edge SRLs
- 7/32" galvanized steel cable lifeline with swivel snap hook

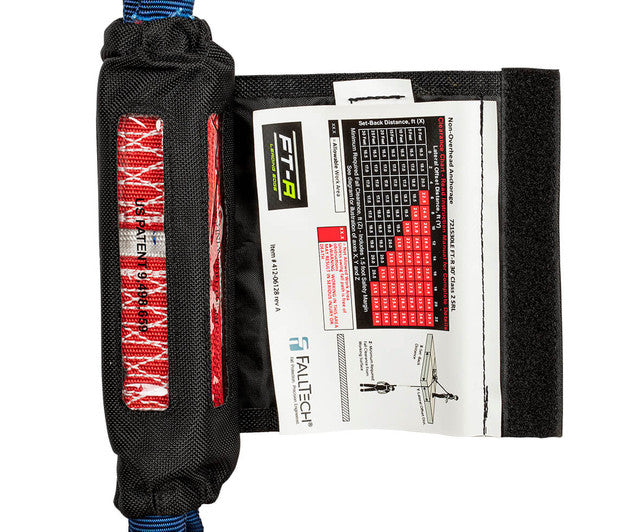

- Innovative energy absorber design provides more consistent performance in all environmental conditions and features full fall clearance diagrams and charts inside the viewpack
- Improved internal mechanism design minimizes unintentional lockups to keep workers moving freely and productively
- Swiveling anchor and leg-end connectors plus an integrated carrying handle simplify installation and transportation

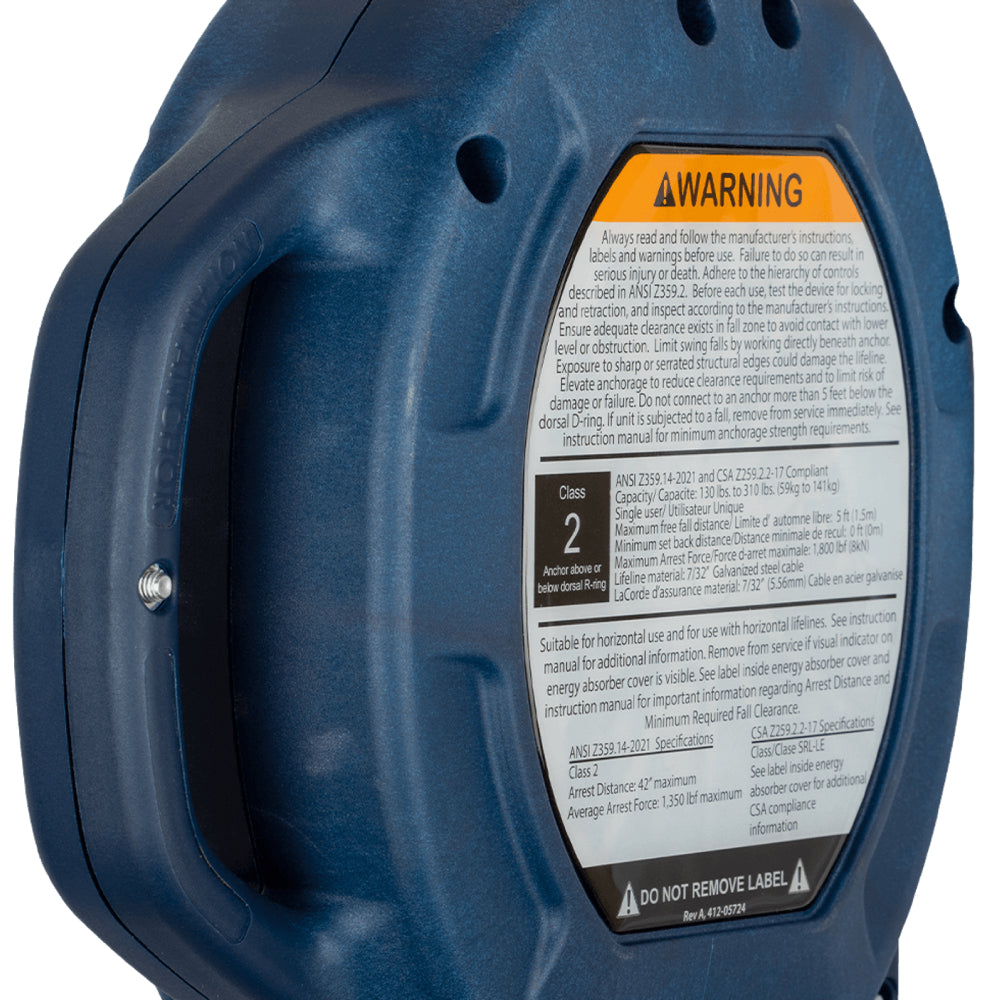

- Industry first UV-resistant and scratch-resistant label keeps warnings legible and units in service

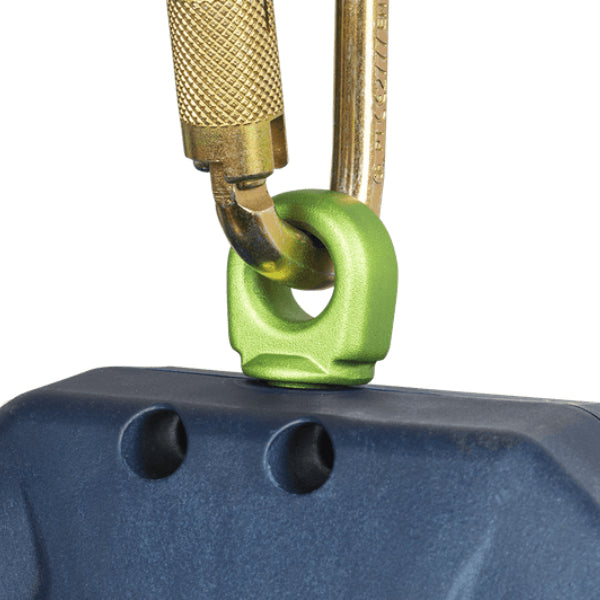

- Includes steel anchorage carabiner with 3/4" gate opening
Specifications:

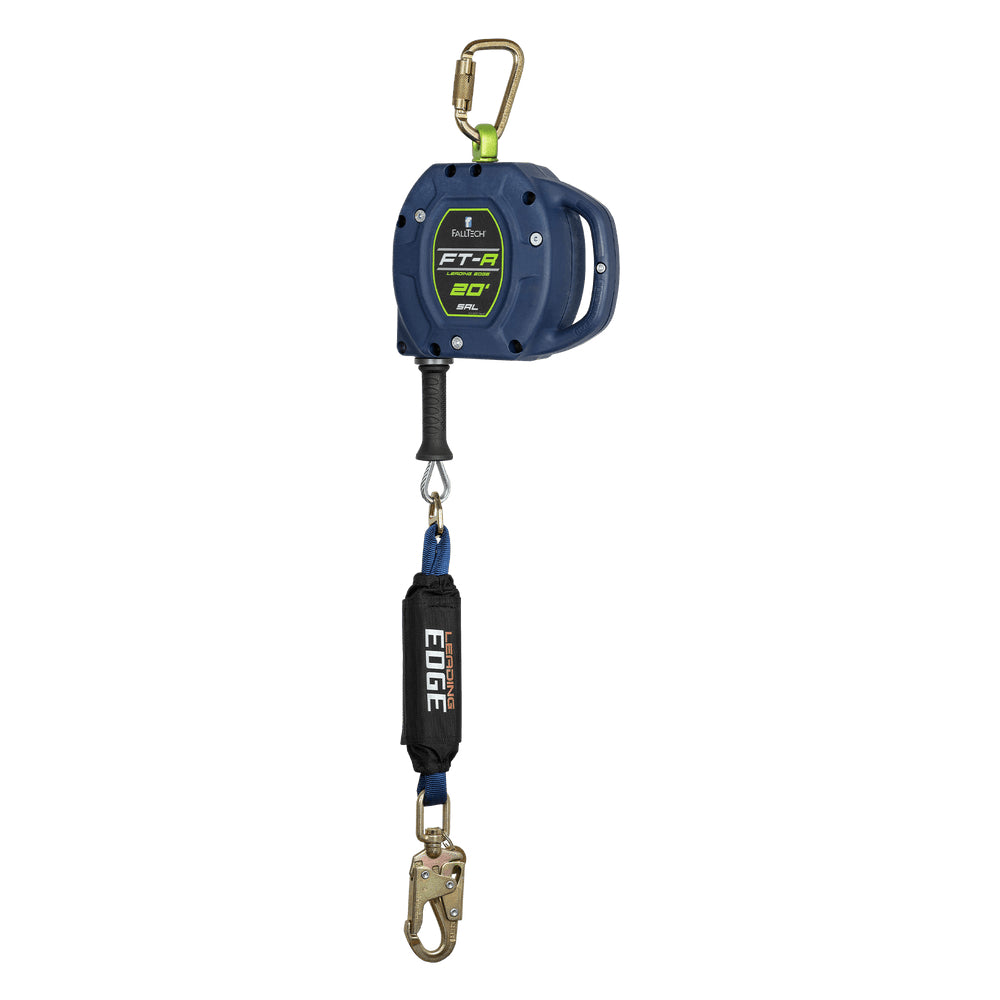

- Product Type: Self-Retracting Lifeline
- Cable: 7/32" Galvanized Steel
- Cable Static Strength: 3,600 lb Minimum
- Energy Absorber: Polyester Tear-Away
- Lifeline Connector: Plated Alloy Steel; 5,000 lb Minimum Static Strength with 3,600 lb Gate Strength
- Anchorage Connector: Plated Alloy Steel; 5,000 lb Minimum Static Strength with 3,600 lb Gate Strength
- Static Strength: 3,600 lb Minimum
- ANSI SRL Class/Type: Class 2 SRL
- Average Arrest Force: 1,350 lb Maximum
- Maximum Arrest Force: 1,800 lb
- Maximum Arrest Distance: 42"
- ANSI User Capacity: 130 to 310 lb Maximum
- OSHA User Capacity: 130 to 310 lb Maximum
- Weight: 13.6 lbs
Specifications:
- ANSI Z359.14-2021 Class 2 SRL
- CSA Z259.2.2-2017
- OSHA 1926.502 and 1910.66
